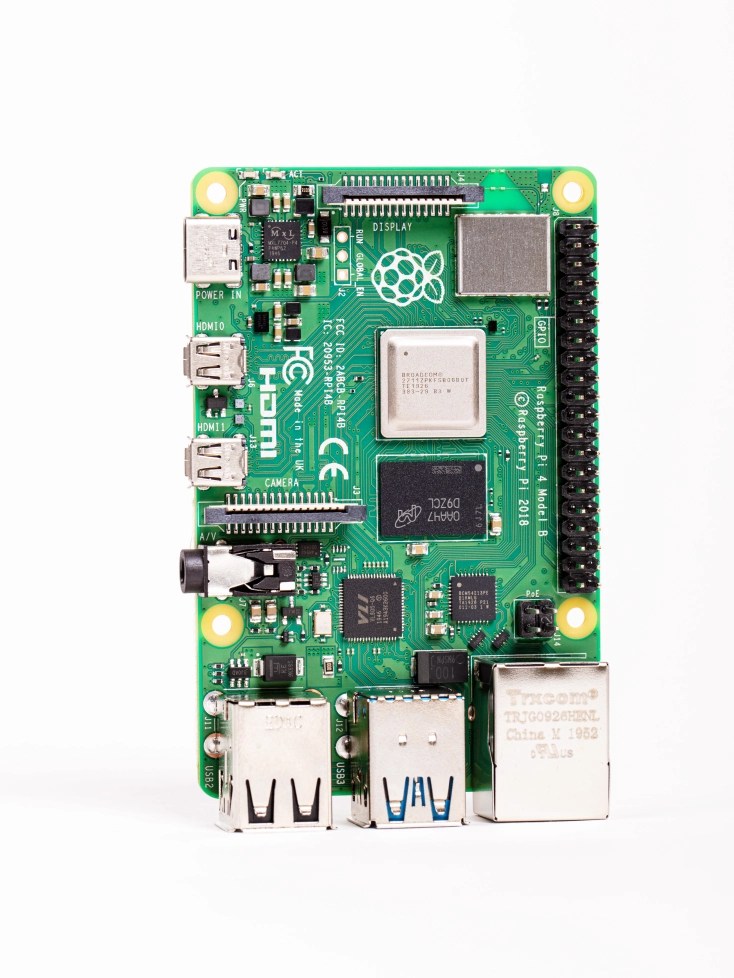

Raspberry Pi 4 Model B – 8GB RAM
Introducing the most powerful member of the ever-popular Raspberry Pi family. The fourth-generation 8GB Raspberry Pi 4 Model B rivals its desktop competitors by bringing:
- 1.5GHz 64-bit quad-core ARM Cortex-A72 CPU & 8GB of LPDDR4 SDRAM for serious processing power.
- Better networking with true Gigabit Ethernet as well as wireless LAN & Bluetooth 5.0 connectivity.
- Dual Micro-HDMI at 4K Display resolution for bigger and better viewing.
- USB-C stable power for your projects, 2x USB 3.0 ports and 2x USB 2.0 ports for various peripherals plus much more…
Description
Take speed & performance to a whole new level with the Pi 4 8GB, but in the same Raspberry Pi form factor you know and love. You can even design the board straight into end products as both the dual-band wireless LAN and Bluetooth have modular compliance certification reducing time to market and costs.
Details
What are the features & benefits of the Raspberry Pi 4 8GB?
Speedier processor
The Raspberry Pi 8GB incorporates a new and improved quad-core 64-bit ARM Cortex-A72 CPU to rival desktop computers. For the first time, the Pi 4 is available in a choice of memory sizes, and the Raspberry Pi with 8GB RAM sits as the largest member of the fourth-generation family. These quicker processing times will see your 8GB Pi carry out complex tasks much more easily, making it more viable than ever as a desktop option or replacement
Improved networking
The Raspberry Pi 8GB RAM offers true Gigabit Ethernet and PoE capability (requires additional PoE HAT); 2.4GHz and 5GHz 802.11b/g/n/ac WiFi and Bluetooth 5.0 with up to four times the range of the old specification. All together these make the 8GB RAM Raspberry Pi 4 Model B board an ideal fit for your next SBC-based IoT project.
Upgraded USB capacity and power

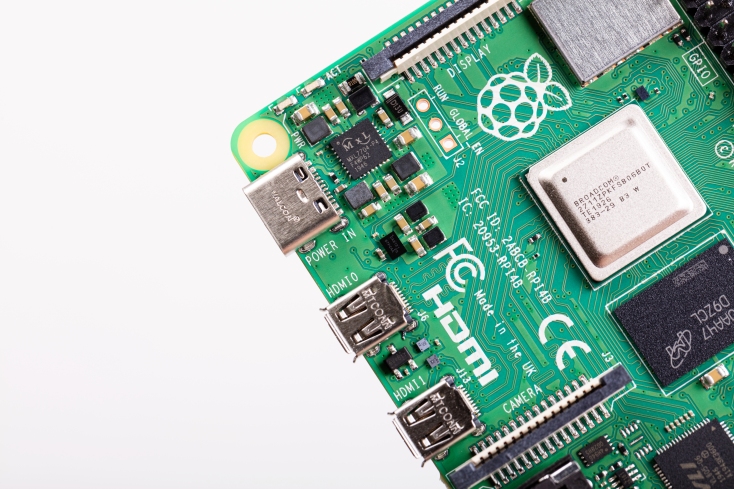

The 8GB Pi 4 boasts four USB ports – two USB 2.0 ports and two upgraded USB 3.0 ports. Replacing the Micro USB connector of the Raspberry Pi 3, the Raspberry Pi 4 8GB RAM utilises a USB Type-C connector for power input, allowing users to consolidate their cable collection. The 8GB Pi 4 also welcomes back a headphone jack to complete an intelligent range of revised and upgraded port features.
Dual video output
Two micro-HDMI ports replace the single full-size HDMI connector on previous iterations, allowing the Raspberry Pi 4 8GB to support two 4k monitors. The Pi 4’s hardware decoding has also been improved to allow it to decode 4K video at 60fps using HEVC encoding.
Backwards compatible
Fans of the series needn’t worry about the Raspberry Pi 8GB Model B not working with any of their existing Pi projects, as the board’s 40-Pin GPIO header and software are fully backwards-compatible.
Checklist for getting started with the Raspberry Pi 4 8GB Checklist:
There is an abundance of learning materials, projects and accessories available for your Pi.
What can I do with 8GB of RAM?
The Raspberry Pi 4 8GB is ideal if you’re an advanced Linux user who wants to use the Raspberry Pi for multitasking and RAM-intensive applications. Having 8GB, the most ever available with a Raspberry Pi, allows you to do things like:
-
- Run virtual machines smoothly
- Run web or database servers with support for more clients, and run databases entirely in-memory
- Create RAM disks for rapid access to data
Technical Specifications
| BROADCOM SOC: | Broadcom 2711 |
| PROCESSOR: | ARM Cortex A72 |
| No. of CORES: | Quad |
| CPU SPEED: | 1.5GHz |
| MEMORY: | 8GB – LPDDR4 |
| GRAPHICS (GPU): | VideoCore VI 4kp60 |
| Video Ports: | 2 x micro HDMI |
| USB PORTS: | 2 x USB3.0 & 2 x USB2.0 |
| GPIO HEADER: | 40 |
| A/V JACK: | 3.5mm Stereo |
| MICRO SD CARD SLOT: | Yes |
| MIPI CSI DISPLAY PORT: | Yes |
| CSI CAMERA PORT: | Yes |
| ETHERNET: | Gigabit |
| WLAN: | 802.11b/g/n/ac 2.4/5GHz |
| BLUETOOTH: | Yes – Bluetooth 5.0 |
| BLUETOOTH LOW ENERGY ( BLE ): | Yes |
| PoE ENABLED: | Yes |
| HAT COMPATIBLE: | Yes |
| DIMENSIONS (mm): | 85 x 56 x 17 |
| WEIGHT (g): | 45 |
| POWER INPUT: | 5.1V / 3A |
| Power Connector: | USB-C |
