Tonybot Arduino Humanoid Robot

Tonybot Arduino Humanoid Robot

Tonybot is a programmable humanoid robot compatible with the Arduino platform. It features a body equipped with 16 high-voltage bus servos and includes over 10 preset motion groups, enabling it to perform actions such as walking, dancing, and gymnastics.Tonybot comes with a variety of sensor expansion packs, compatible with Arduino programming, allowing for secondary development of the robot. We provide detailed course materials for learning and open-source code, making it easy for you to realize various creative ideas.

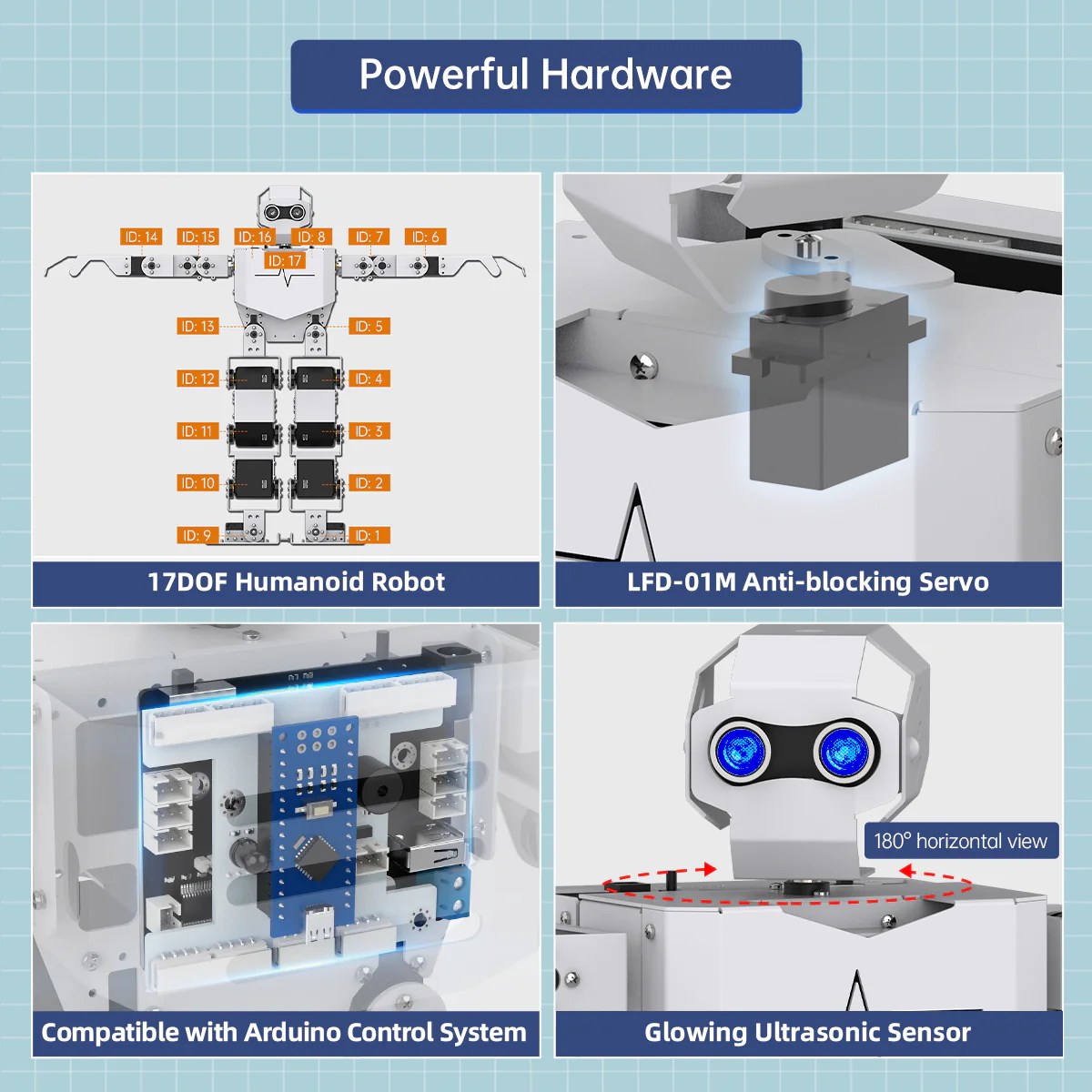

17DOF Humanoid Robot

Tonybot has a 17DOF structural design, which can achieve flexible postures and complete difficult action groups such as dancing.

Compatible with Arduino Control System

The humanoid robot servo controller and the compatible Arduino Nano controller combine to reach new heights.

Glowing Ultrasonic Sensor

The RGB ultrasonic sensor has high precision and small blind area. It can not only adjust the brightness of the light, but also change the color of ultrasonic light.

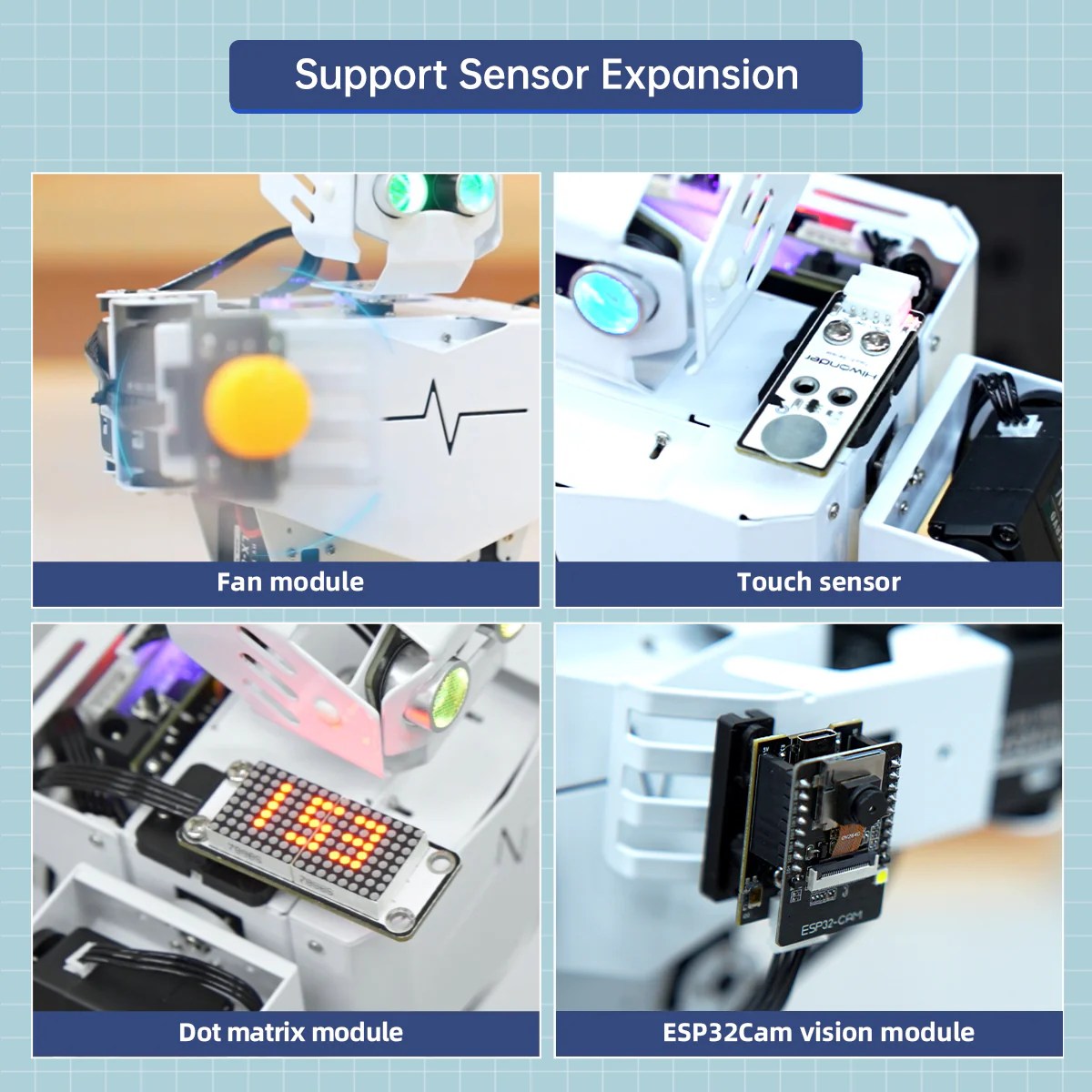

Support Sensor Expansion

Expand the capabilities of Tonybot with a variety of sensors and unlock endless possibilities for your project.

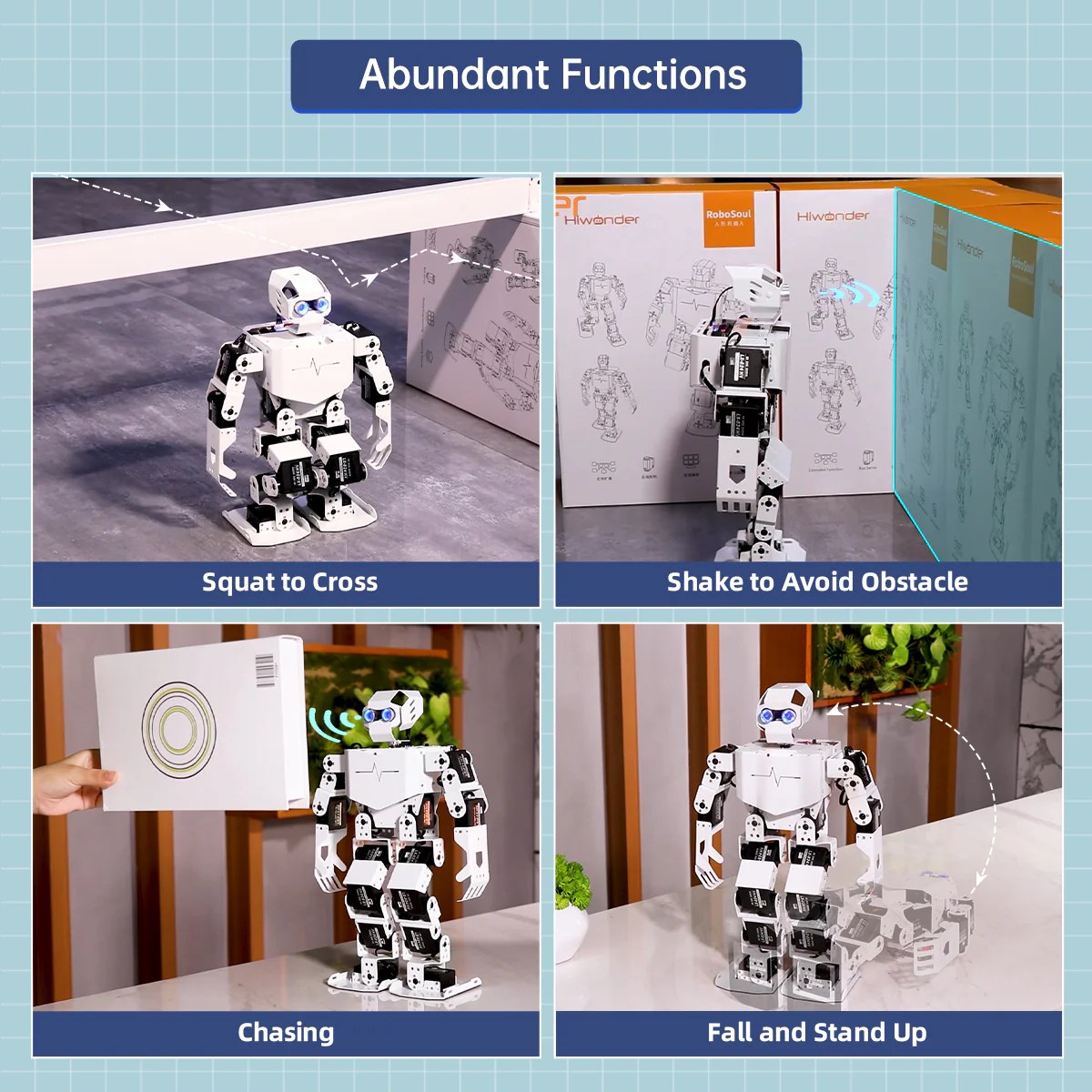

Abundant Functions

Squat to Cross

Fall and Stand Up

Chasing

Shake to Avoid Obstacle

Support Arduino Programming

You can use an Arduino-compatible IDE to carry out secondary development of the Tonybot robot. We provide you with the source code of the secondary development gameplay and have detailed comments on the code to facilitate your learning.

Infrared Remote Control

Tonybot can be controlled through an infrared remote control, making it easy to get started, allowing you to control your robot anytime and anywhere.

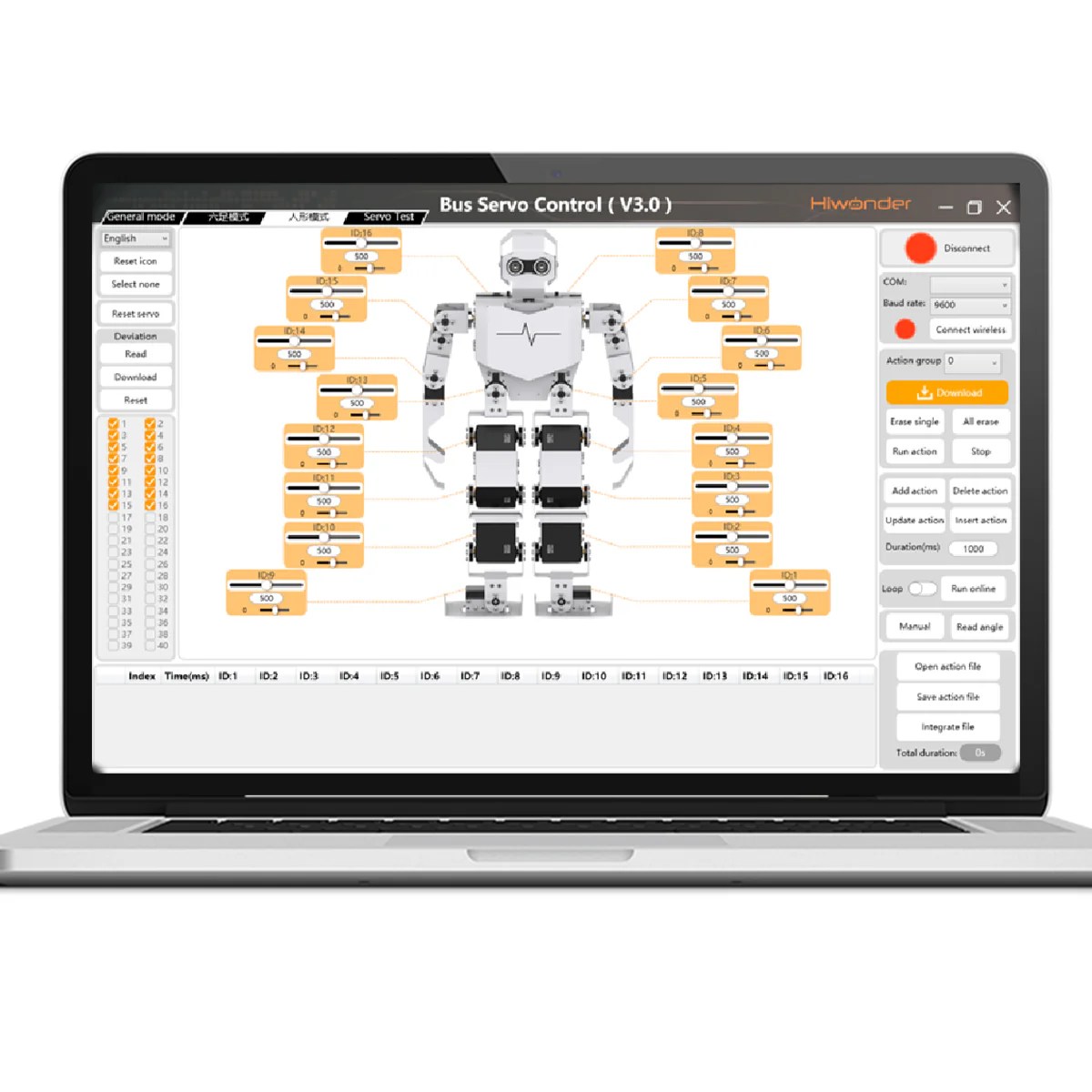

PC Software Control

Using graphical PC software, you can effortlessly control servos and customize actions by simply dragging sliders, without the need for programming.

High Voltage Intelligent Bus Servo

Compared with the traditional 7.4V servo, the 11.1V high-voltage servo can reduce the current by more than 60%, greatly extending the robot’s battery life.

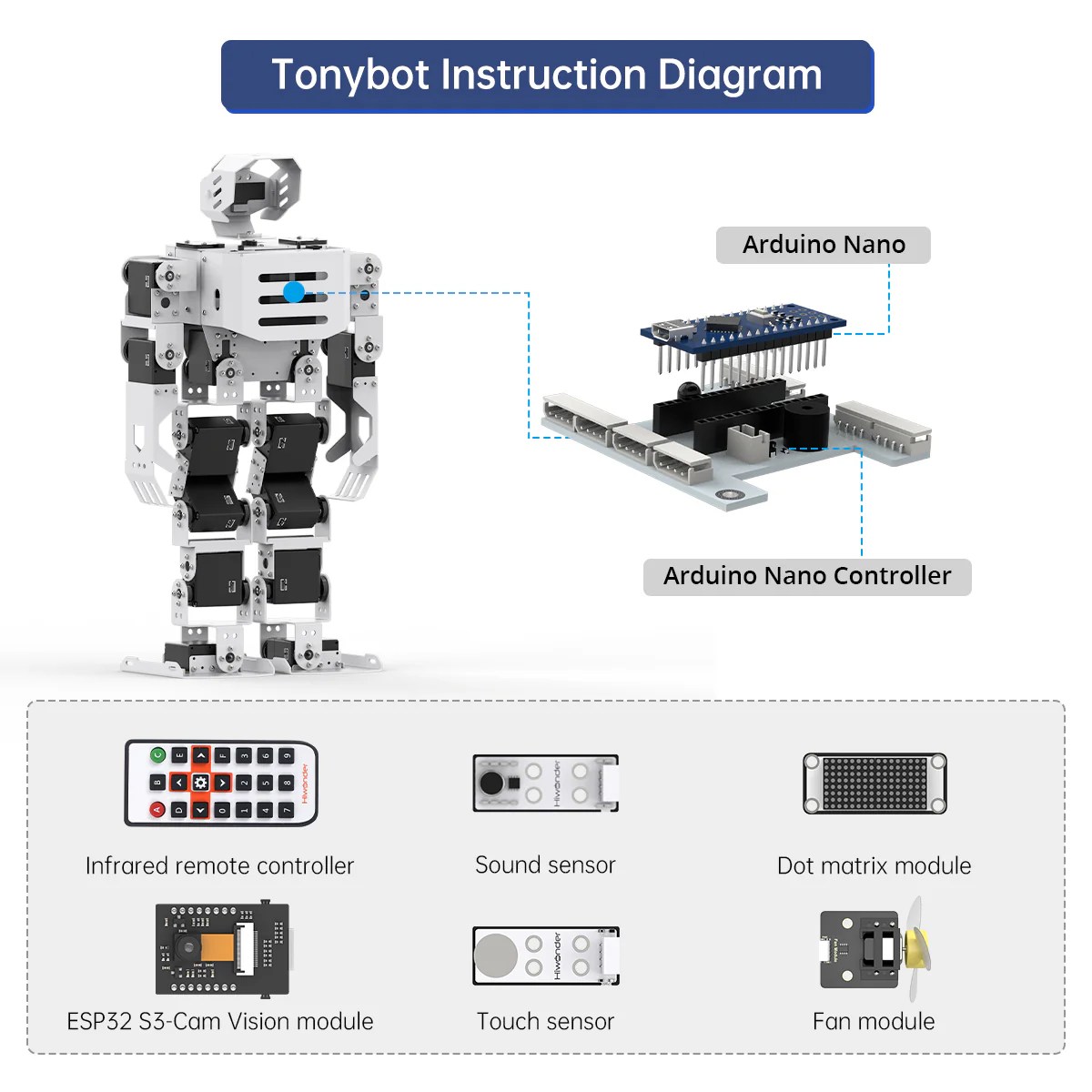

Humanoid Robot Servo Controller

Arduino Nano Controller

Product Parameters

Product size	379*187*121mm
Product weight	About 1.8kg
DOF	17DOF
Body material	Hard aluminum alloy
Detection distance	2cm-400cm
Battery	11.1V 2000mAh 10C lithium battery
Hardware	Humanoid robot servo controller + Arduino Nano controller
Control method	Computer control/infrared remote control
Servo	LX-824HV high-voltage bus servo + LFD-01M anti-blocking servo
Packing size	46*33*17cm
Packing weight	About 3.3kg

Dimensional Diagram

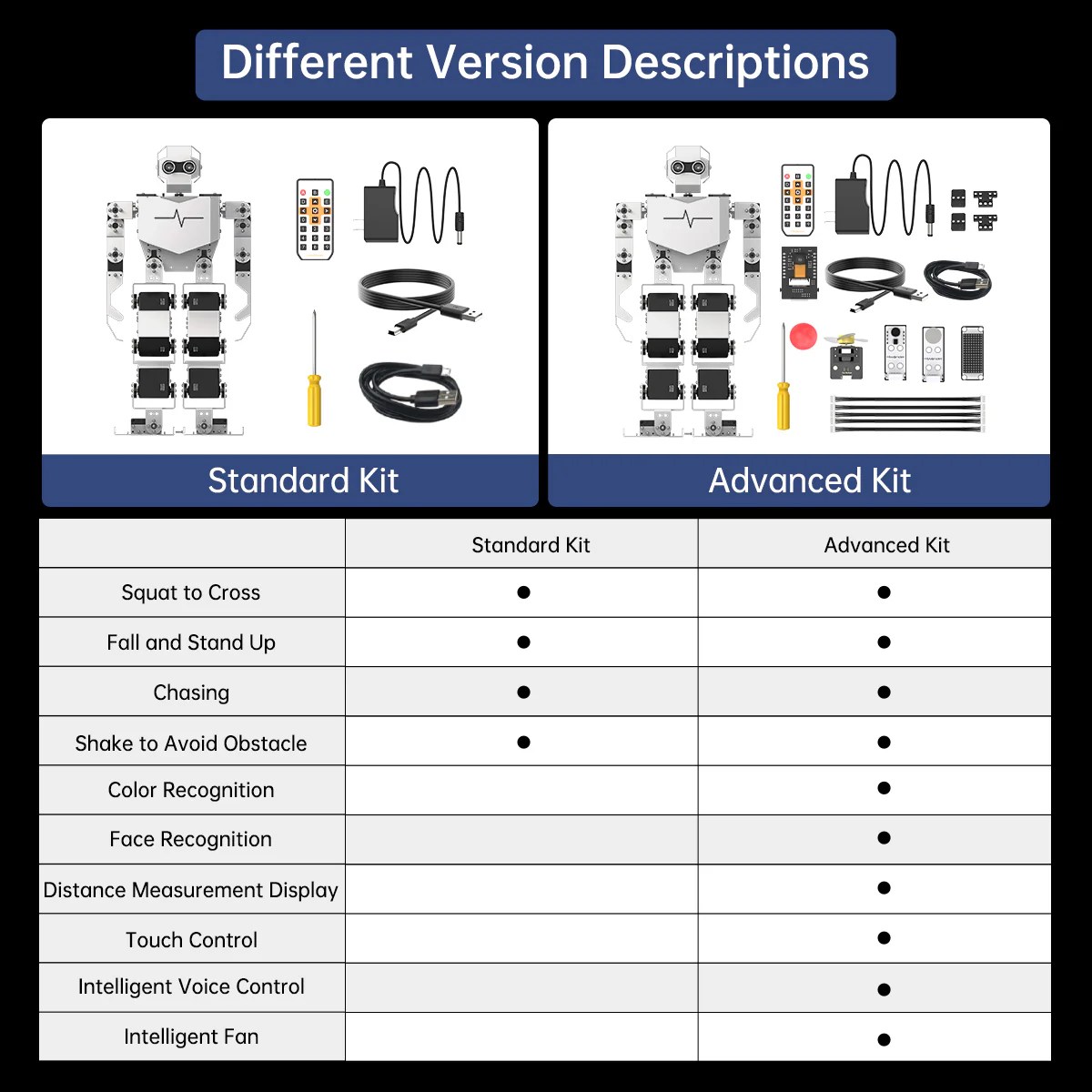

Tonybot Standard Packing List

Tonybot Advanced Packing List
